| Short name |
|
MAX-075-150-D3-(36)
|
| Full name |
|

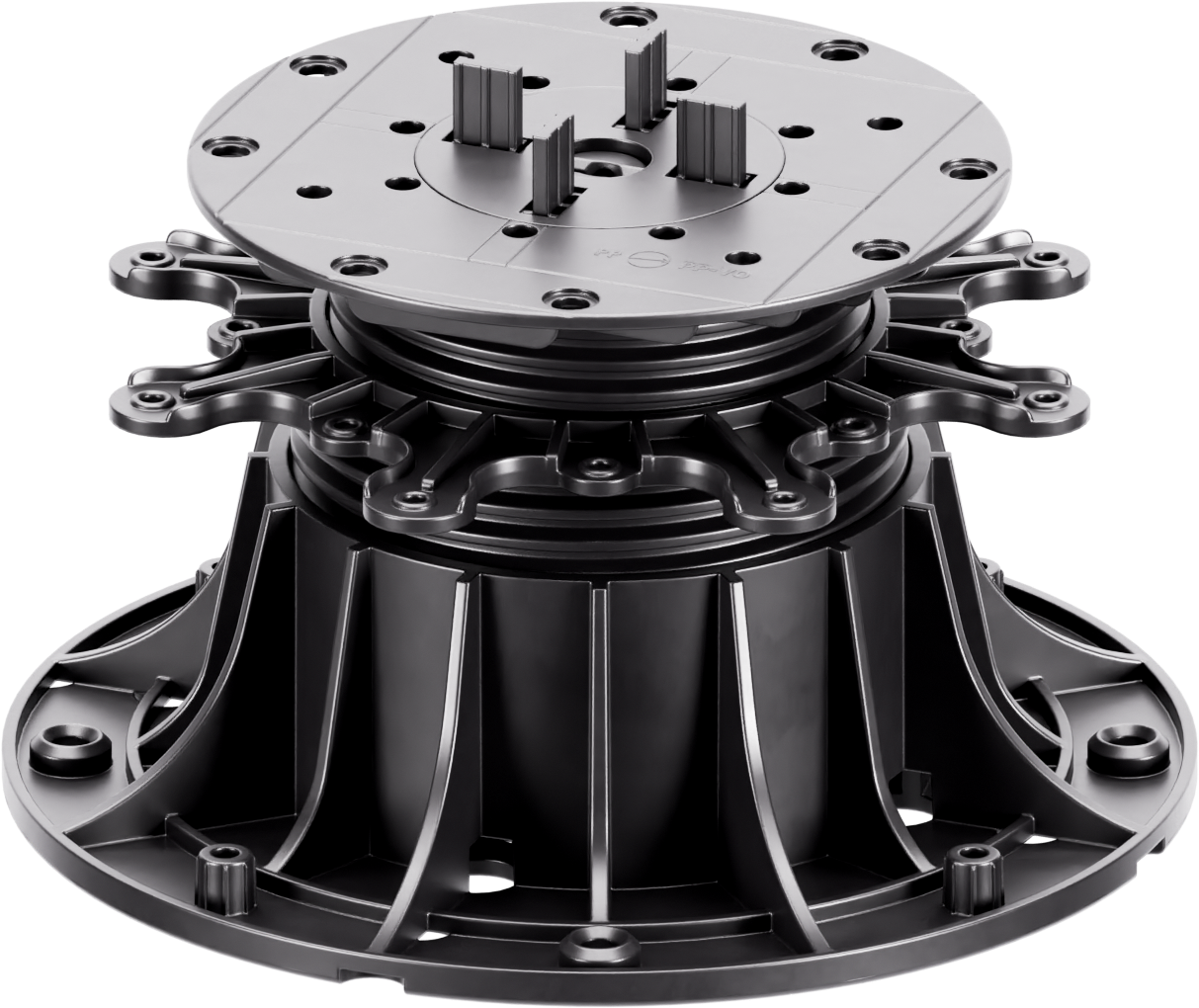

Adjustable pedestal MAX 75-150 mm for outdoor raised flooring for tiles with D3
|
| Product group |
|
Max
|
| Code |
|
104.020211
|
| EAN |
|
5904276342237
|
| Application |
|
• terrace tiles
|
| Minimum height [mm] |
|
75 mm
|
| Minimum height [inch] |
|
2 15/16 inch
|
| Maximum height [mm] |
|
150 mm
|
| Maximum height [inch] |
|
5 7/8 inch
|
| Load resistance up to |
|
1500 kg
|
| Load resistance up to [lbs] |
|
3306.93 lbs
|
| Load resistance up to [kN] |
|
15 kN
|
| What finishing materials can be used |
|
• concrete paver
• stone pavers • ceramic tile |
| Special Feature |
|
• Fire resistance
• Slope leveling • Sound insulation • Inspection access • Top adjustment • Vertical edge • Heavy load resistance • Extra large height • Wind protection |
| characteristic_attributes |
|
Product features:
|
|
|
|
| Regulation type |
|
smooth
|
| Total dimension - length |
|
210 mm
|
| Total product dimension length (inch) |
|
8 1/4 inch
|
| Total dimension - width |
|
210 mm
|
| Total product dimension width (inch) |
|
8 1/4 inch
|
| Head area |
|
(165 cm2)
|
| Head area [inch²] |
|
25.58 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 145 mm
|
| Head diameter (top plate) [inch] |
|
5 11/16 inch
|
| Base diameter |
|
Ø 210 mm
|
| Base diameter [inch] |
|
8 1/4 inch
|
| Weight |
|
~0.61 kg
|
| lbs |
|
1.3448 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
black
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
PP
|
| Percentage of recycled material |
|
100 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• exterior use
• Fountain |
| Consists of |
|
Base MAX 2 , MAX 2 nut sleeve , Screw MAX 2 , Disc gap spacer for tiles 3 mm
|
