| Short name |
|
ADEC-LE145-(1)
|
| Full name |
|

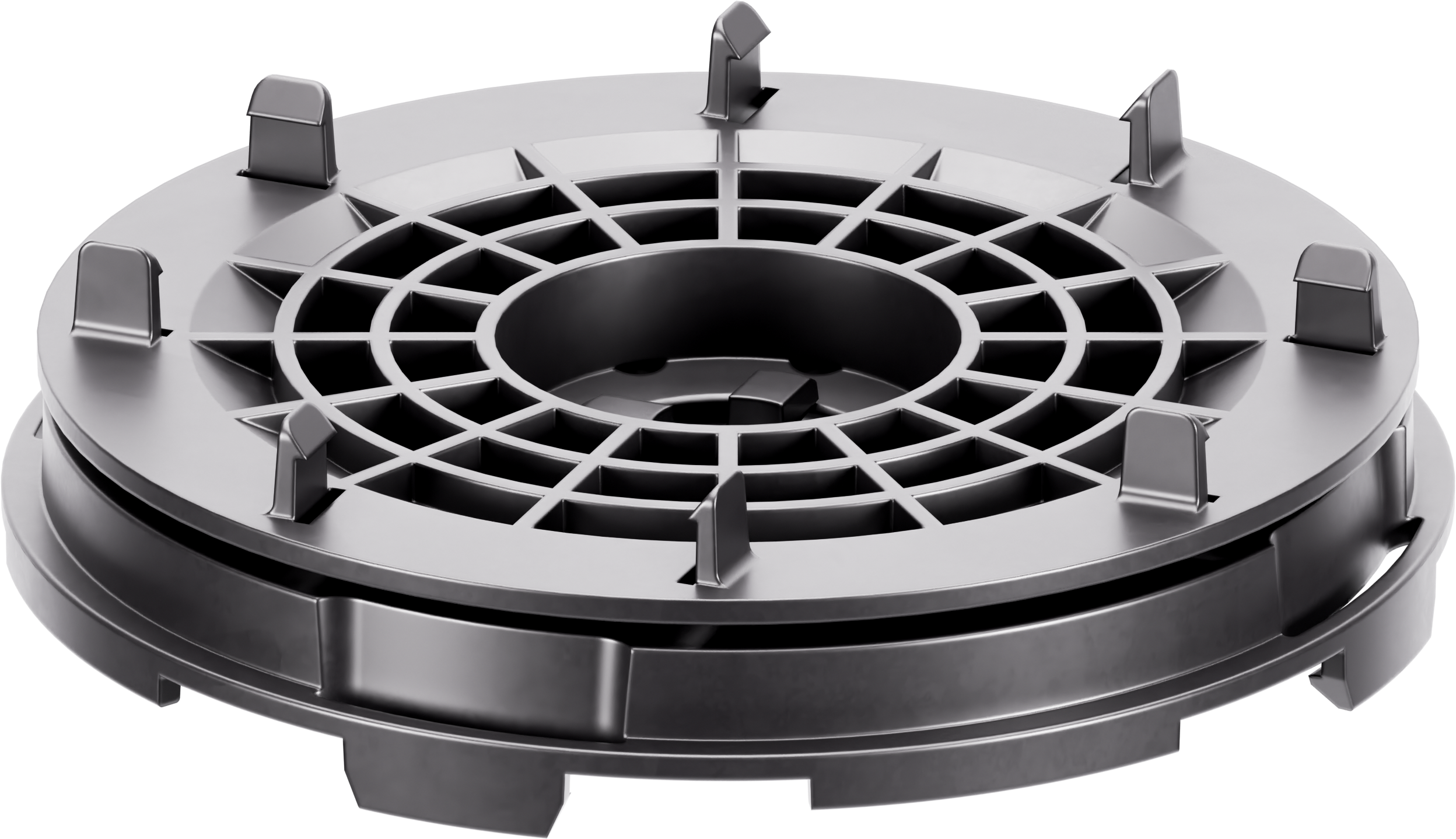

Self-levelling head for AluDeck joist click mounting for MAX and SPIRAL pedestals, slope compensation up to 6%
|
| Product group |
|
AluDeck
|
| Code |
|
109.050211
|
| EAN |
|
5904276345467
|
| Application |
|
• terrace tiles
• terrace joist • wpc decking boards |
| Minimum height [mm] |
|
19 mm
|
| Minimum height [inch] |
|
3/4 inch
|
| Maximum height [mm] |
|
19 mm
|
| Maximum height [inch] |
|
3/4 inch
|
| Load resistance up to |
|
0 kg
|
| Load resistance up to [lbs] |
|
0 lbs
|
| What finishing materials can be used |
|
• AluDeck
|
| characteristic_attributes |
|
Product features: Two-part construction: The head consists of a lower part with a concave spherical shape and an upper part with a protruding sphere, forming together a movable joint. Self-leveling range: The applied spherical joint allows for automatic adjustment of the slope angle with a tolerance of up to 6%. Click System: The upper part is equipped with durable clips enabling quick installation of ADJ aluminum joists without the use of screws. |
|
|
|
| Total dimension - length |
|
149.5 mm
|
| Total product dimension length (inch) |
|
5 7/8 inch
|
| Total dimension - width |
|
149.5 mm
|
| Total product dimension width (inch) |
|
5 7/8 inch
|
| Head area |
|
(162 cm2)
|
| Head area [inch²] |
|
25.11 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 144 mm
|
| Head diameter (top plate) [inch] |
|
5 11/16 inch
|
| Base diameter |
|
Ø 0 mm
|
| Weight |
|
~0.18 kg
|
| lbs |
|
0.3968 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
black
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
PP
|
| Percentage of recycled material |
|
100 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• Fountain
• exterior use |
| Consists of |
|
Self-leveling head AluDeck 145 mm bottom , Self-leveling head AluDeck 145 mm top
|
