| Short name |
|
ADEC-ADJ25X45X2000-(1)
|
| Full name |
|

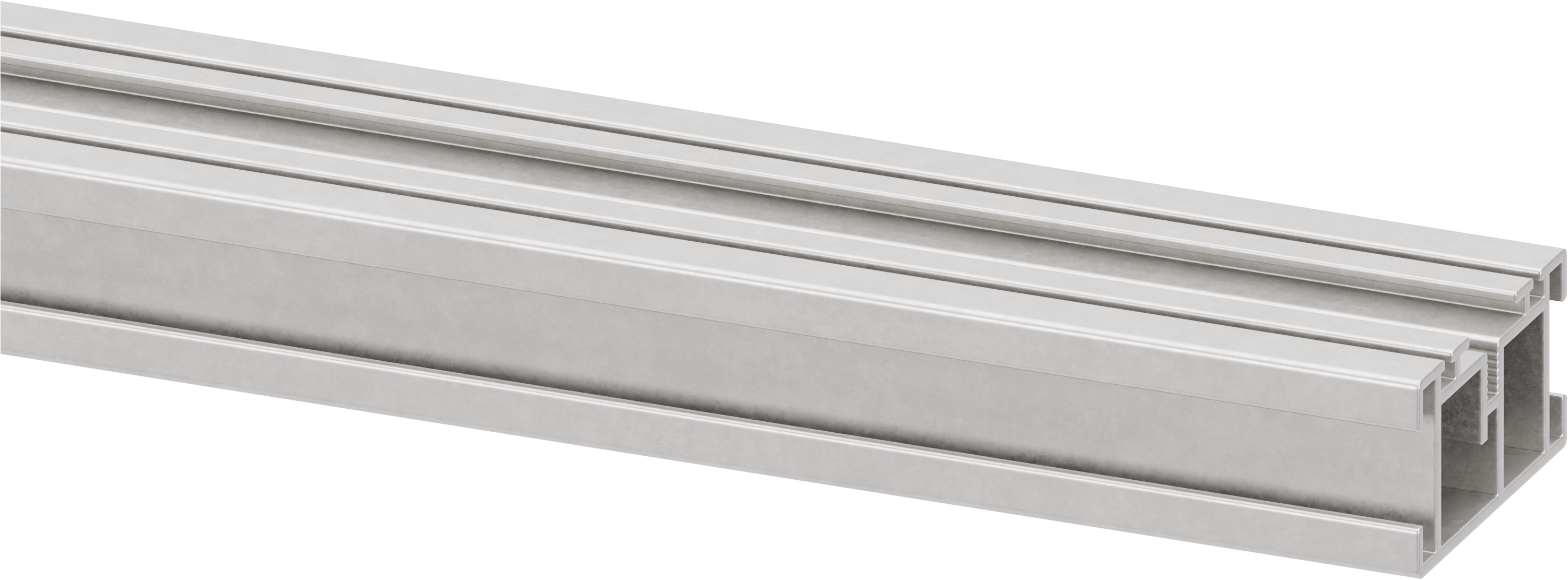

AluDeck aluminium joist 25×45×2000 mm
|
| Product group |
|
AluDeck
|
| Code |
|
109.010111
|
| EAN |
|
5904276346488
|
| Application |
|
• wpc decking boards
• wooden decking • terrace joist • terrace tiles |
| Minimum height [mm] |
|
25 mm
|
| Minimum height [inch] |
|
1 inch
|
| Maximum height [mm] |
|
25 mm
|
| Maximum height [inch] |
|
1 inch
|
| Load resistance up to |
|
0 kg
|
| Load resistance up to [lbs] |
|
0 lbs
|
| What finishing materials can be used |
|
• AluDeck
• ceramic tile • wooden decking boards • concrete paver • stone pavers |
| Special Feature |
|
• Sound insulation
• Inspection access • Vertical edge • Heavy load resistance |
| characteristic_attributes |
|
Product features: Material and durability: Made from high-quality aluminum, ensuring complete resistance to corrosion, rotting, and thermal deformation. Unique profile shape: The structure is equipped with a dedicated socket for an integrated rubber seal, which dampens the connection between the structure and the paver. Mounting socket: Equipped with a special socket with zigzag vertical walls, facilitating the initial thread engagement of the screw when installing pavers or boards. Connection system: The side walls feature special clips enabling screwless longitudinal and transverse connection, as well as installation on "click" type pedestals. |
|
|
|
| Total dimension - length |
|
2000 mm
|
| Total product dimension length (inch) |
|
78 3/4 inch
|
| Total dimension - width |
|
45 mm
|
| Total product dimension width (inch) |
|
1 3/4 inch
|
| Head area |
|
(0 cm2)
|
| Head area [inch²] |
|
0 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 0 mm
|
| Base diameter |
|
Ø 0 mm
|
| Weight |
|
~1.58 kg
|
| lbs |
|
3.4833 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
black
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
ALU
|
| Percentage of recycled material |
|
0 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• Fountain
• exterior use |
| Consists of |
|
JOIST ALU 25x45x2000
|
