| Short name |
|
CLE-080-200-L3-AD-(50)
|
| Full name |
|

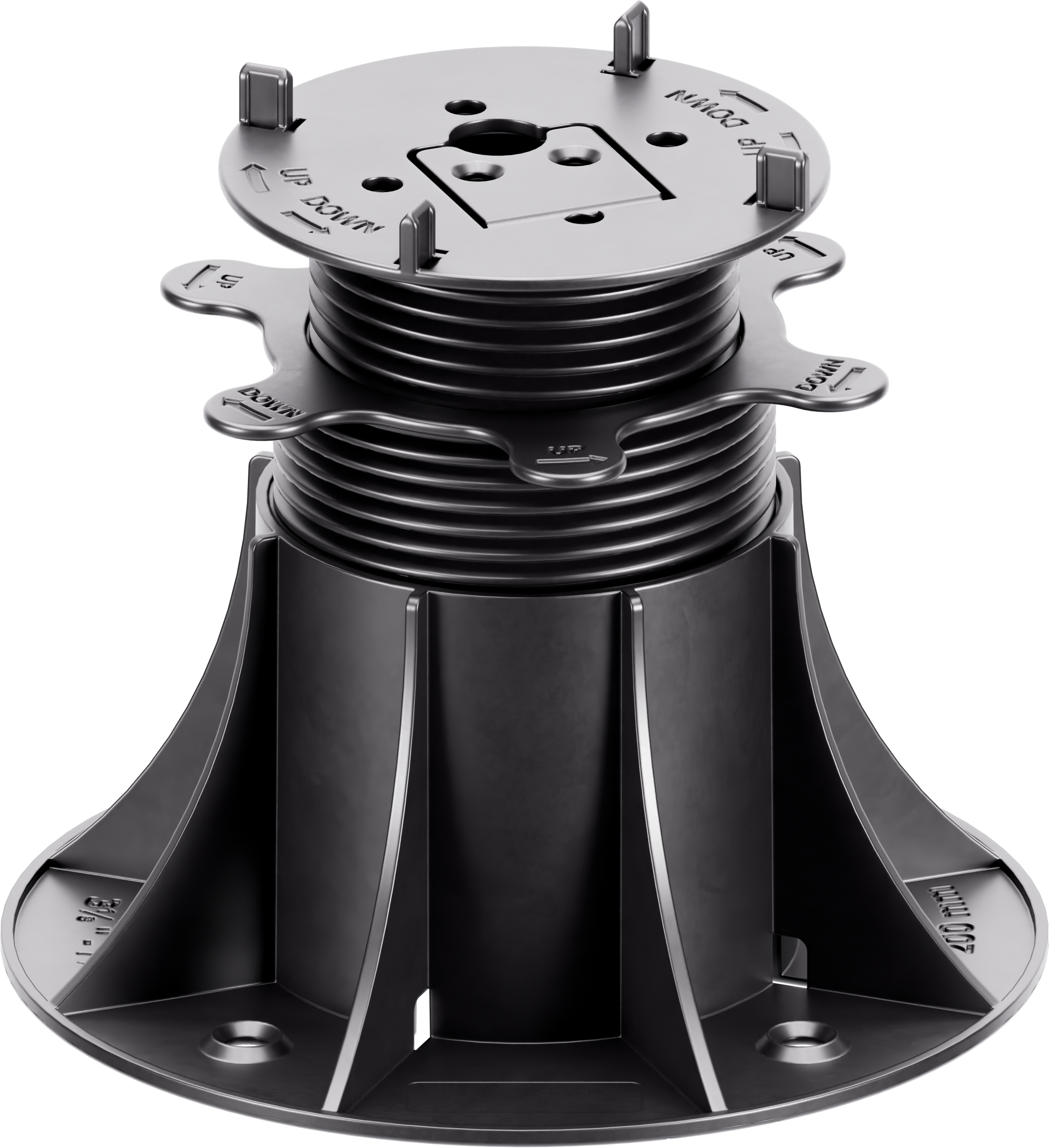

Adjustable pedestal Clever Level 80-200 mm for outdoor raised flooring with 3 mm spacer gap for tiles and decking
|
| Product group |
|
Clever Level
|
| Code |
|
105.030111
|
| EAN |
|
5904276343371
|
| Application |
|
• terrace tiles
• terrace joist |
| Minimum height [mm] |
|
80 mm
|
| Minimum height [inch] |
|
3 1/8 inch
|
| Maximum height [mm] |
|
200 mm
|
| Maximum height [inch] |
|
7 7/8 inch
|
| Load resistance up to |
|
500 kg
|
| Load resistance up to [lbs] |
|
1102.31 lbs
|
| Load resistance up to [kN] |
|
5 kN
|
| What finishing materials can be used |
|
• concrete paver
• stone pavers • ceramic tile • hardwood joist • softwood joist • aluminium joist • WPC joist |
| Special Feature |
|
• Sound insulation
• Inspection access • Very low height |
| characteristic_attributes |
|
Product features:
|
|
|
| Regulation type |
|
smooth
|
| Total dimension - length |
|
160 mm
|
| Total product dimension length (inch) |
|
6 1/3 inch
|
| Total dimension - width |
|
160 mm
|
| Total product dimension width (inch) |
|
6 1/3 inch
|
| Head area |
|
(66 cm2)
|
| Head area [inch²] |
|
10.23 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 92 mm
|
| Head diameter (top plate) [inch] |
|
3 2/3 inch
|
| Base diameter |
|
Ø 160 mm
|
| Base diameter [inch] |
|
3 1/3 inch
|
| Weight |
|
~0.25 kg
|
| lbs |
|
0.5512 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
black
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
PP
|
| Percentage of recycled material |
|
100 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• exterior use
|
| Consists of |
|
Adjustable pedestal Clever Level 80-200 mm for outdoor raised flooring with 3 mm spacer gap for tiles and decking
|
