| Short name |
|
AKCW-LE145-(100)
|
| Full name |
|

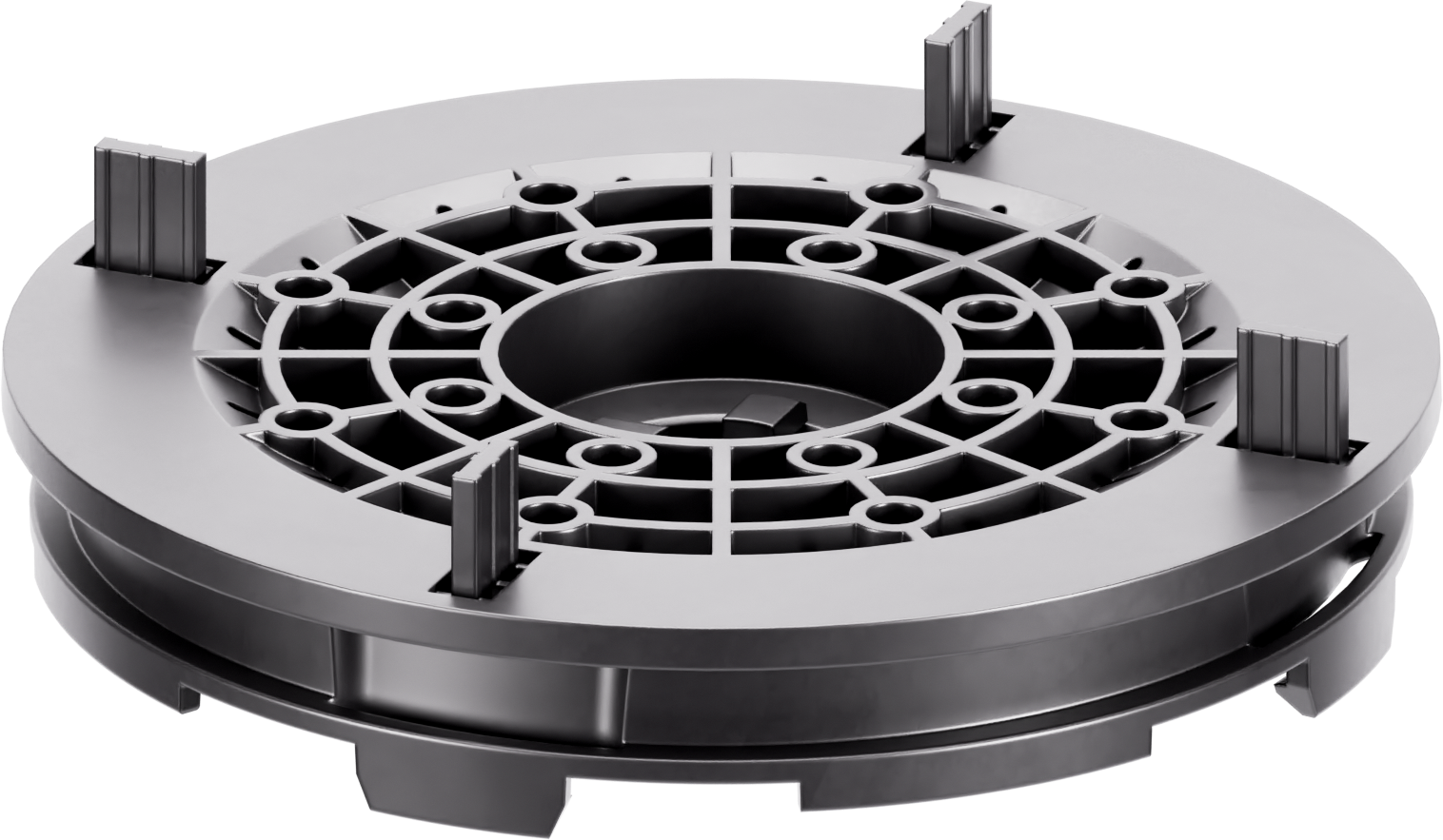

Self leveling head for SPIRAL,MAX with maximum slope compensation 6% - height 20 mm
|
| Product group |
|
Accessories
|
| Code |
|
110.051011
|
| EAN |
|
5904276343593
|
| Application |
|
• terrace tiles
|
| Minimum height [mm] |
|
20 mm
|
| Minimum height [inch] |
|
3/4 inch
|
| Maximum height [mm] |
|
20 mm
|
| Maximum height [inch] |
|
3/4 inch
|
| Load resistance up to |
|
0 kg
|
| Load resistance up to [lbs] |
|
0 lbs
|
| What finishing materials can be used |
|
• concrete paver
• stone pavers • ceramic tile |
| characteristic_attributes |
|
Characteristics of the accessory:
|
|
|
|
| Total dimension - length |
|
157 mm
|
| Total product dimension length (inch) |
|
6 3/16 inch
|
| Total dimension - width |
|
157 mm
|
| Total product dimension width (inch) |
|
6 3/16 inch
|
| Head area |
|
(173 cm2)
|
| Head area [inch²] |
|
26.82 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 157 mm
|
| Head diameter (top plate) [inch] |
|
6 3/16 inch
|
| Base diameter |
|
Ø 0 mm
|
| Weight |
|
~0.17 kg
|
| lbs |
|
0.3748 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
black
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
PP
|
| Percentage of recycled material |
|
100 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• exterior use
|
| Consists of |
|
Self-leveling head 145 mm - top , Self-leveling head 145 mm - bottom
|
