| Short name |
|
DECS-LDF-(1)
|
| Full name |
|
DeckSafe locking pin for substructure grid with protection against wind uplift with screw
|
| Product group |
|
DeckSafe
|
| Code |
|
108.030111
|
| Application |
|
• terrace pavers
|
| Minimum height [mm] |
|
0 mm
|
| Maximum height [mm] |
|
0 mm
|
| Load resistance up to |
|
0 kg
|
| Load resistance up to [lbs] |
|
0 lbs
|
| What finishing materials can be used |
|
• DeckSafe
• concrete paver • ceramic tile • stone pavers |
| characteristic_attributes |
|

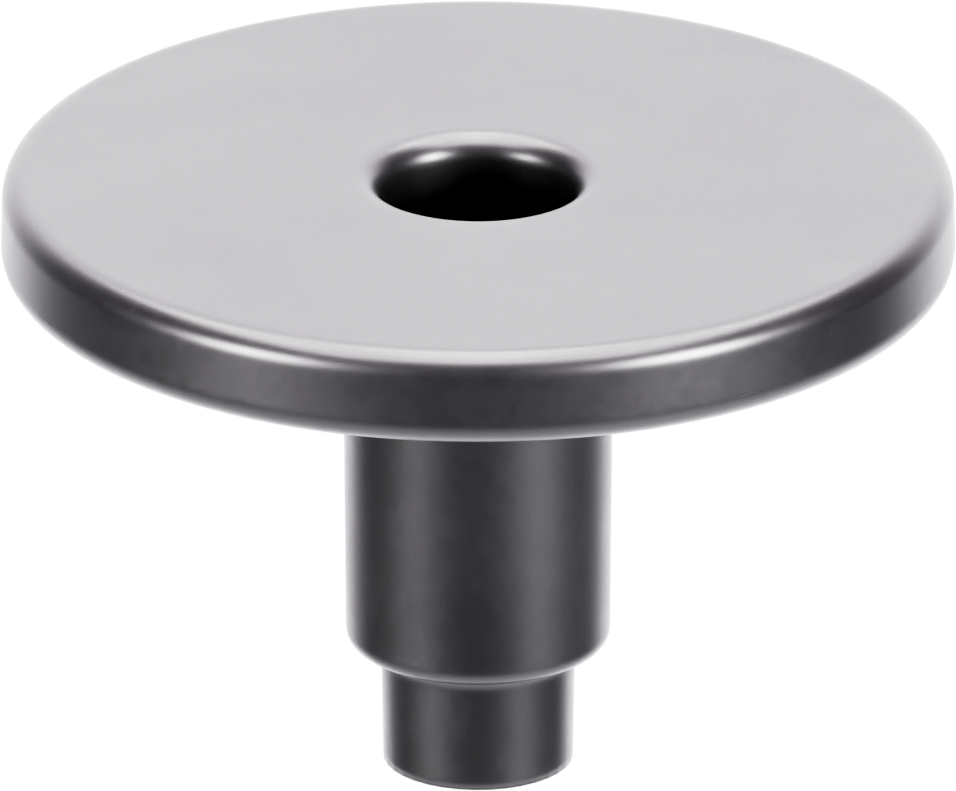

Product features: Geometry: A stud-shaped element consisting of a cap (head) with a diameter of 56 mm and a stem with a height of 22.5 mm. Through-hole: Equipped with a central channel featuring a formed internal support shelf, on which the head of the fastening screw rests. Locking mechanism: The design allows the mushroom head to move freely within the mounting socket along the gaps between the pavers (when the screw is loosened), which is crucial for the disassembly function. Integrated fastening: Inside the stem, there is a screw that, when unscrewed, remains inside the element, preventing its loss and facilitating reassembly. |
|
|
|
| Total dimension - length |
|
58 mm
|
| Total product dimension length (inch) |
|
2 1/4 inch
|
| Total dimension - width |
|
58 mm
|
| Total product dimension width (inch) |
|
2 1/4 inch
|
| Head area |
|
(0 cm2)
|
| Head area [inch²] |
|
0 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 0 mm
|
| Base diameter |
|
Ø 0 mm
|
| Weight |
|
~0.02 kg
|
| lbs |
|
0.0441 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Percentage of recycled material |
|
100 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• Fountain
• exterior use |
| Consists of |
|
LDF Handle , Wkręt 6x80 Inox
|
