| Short name |
|
SPI-010-017-D3-(125)
|
| Full name |
|

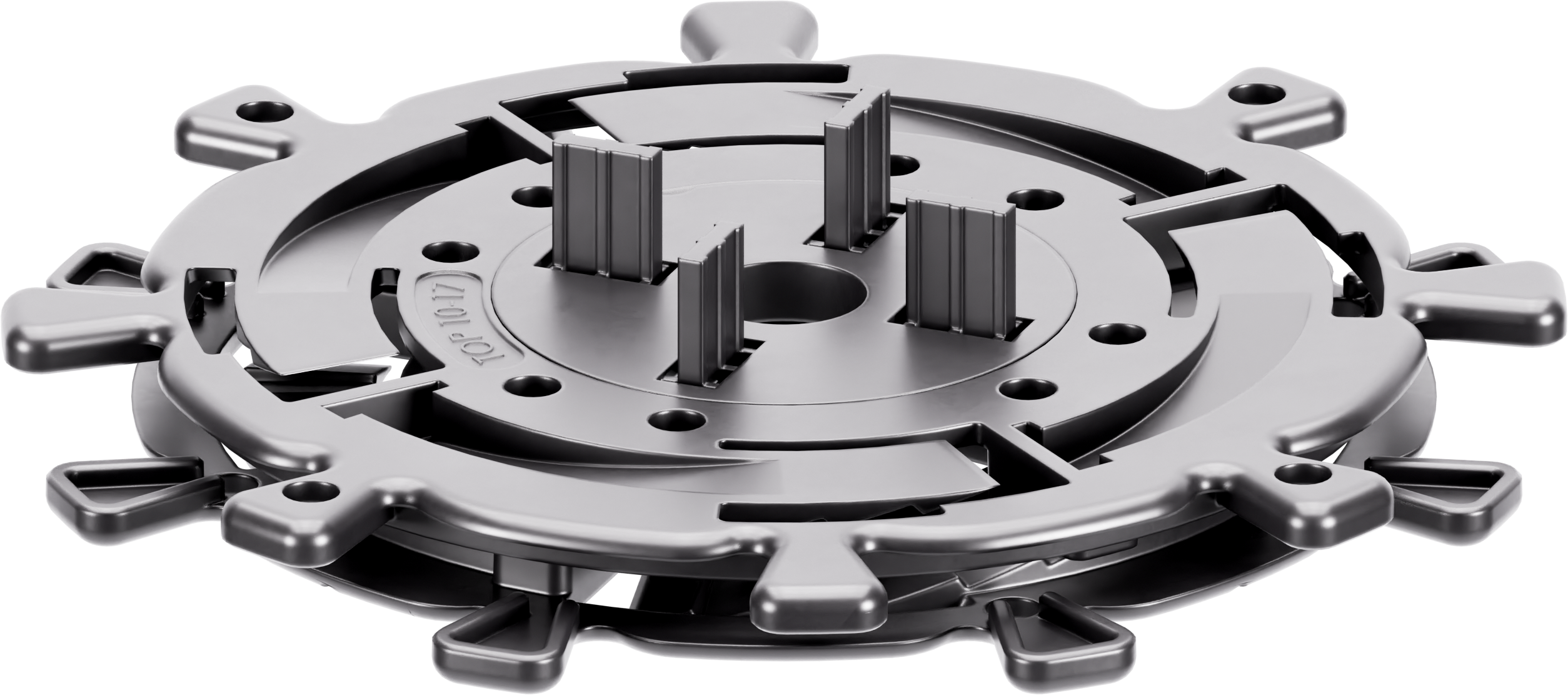

Adjustable pedestal SPIRAL 10-17 mm for outdoor raised flooring for tiles with D3
|
| Product group |
|
Spiral
|
| Code |
|
103.010211
|
| EAN |
|
5904276340394
|
| Application |
|
• terrace tiles
|
| Minimum height [mm] |
|
10 mm
|
| Minimum height [inch] |
|
3/8 inch
|
| Maximum height [mm] |
|
17 mm
|
| Maximum height [inch] |
|
11/16 inch
|
| Load resistance up to |
|
2000 kg
|
| Load resistance up to [lbs] |
|
4409.24 lbs
|
| Load resistance up to [kN] |
|
20 kN
|
| What finishing materials can be used |
|
• concrete paver
• stone pavers • ceramic tile |
| Special Feature |
|
• Fire resistance
• Slope leveling • Sound insulation • Inspection access • Vertical edge • Very low height • Heavy load resistance |
| characteristic_attributes |
|
Product features:
|
|
|
|
| Regulation type |
|
stepped
|
| Total dimension - length |
|
185 mm
|
| Total product dimension length (inch) |
|
7 1/4 inch
|
| Total dimension - width |
|
185 mm
|
| Total product dimension width (inch) |
|
7 1/4 inch
|
| Head area |
|
(160 cm2)
|
| Head area [inch²] |
|
24.8 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 145 mm
|
| Head diameter (top plate) [inch] |
|
5 11/16 inch
|
| Base diameter |
|
Ø 145 mm
|
| Base diameter [inch] |
|
5 11/16 inch
|
| Weight |
|
~0.13 kg
|
| lbs |
|
0.2866 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
black
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
PP
|
| Percentage of recycled material |
|
100 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• exterior use
|
| Consists of |
|
Pedestal 10-17 SPIRAL top , Pedestal 10-17 SPIRAL bottom , Disc gap spacer for tiles 3 mm
|
