| Short name |
|
ALU-070-095-L3-(30)
|
| Full name |
|

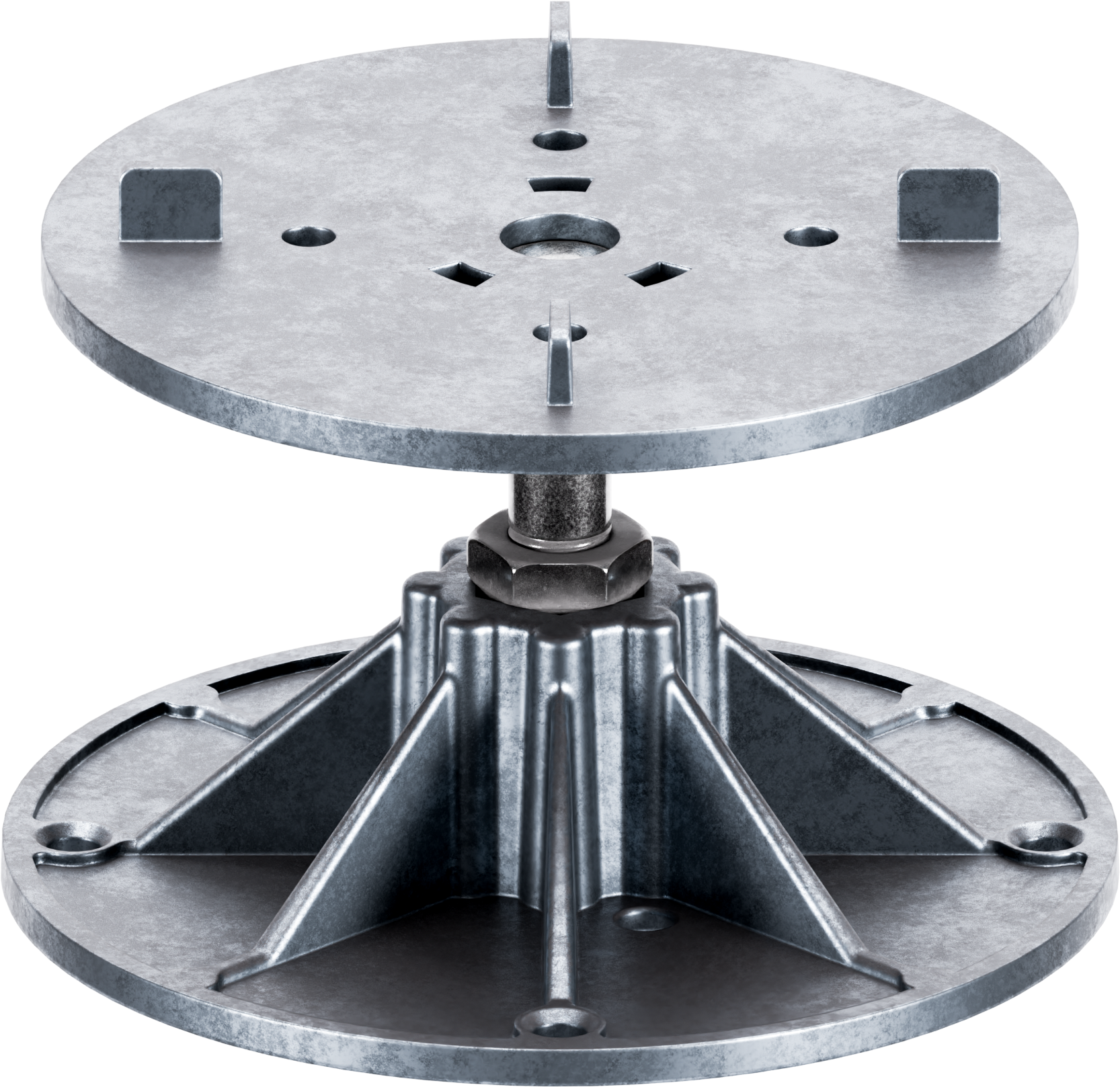

Adjustable pedestal ALU 70-95 mm for outdoor raised flooring with tiles with built in 3 mm gap spacers - non combustible class A1
|
| Product group |
|
Alu
|
| Code |
|
107.040111
|
| EAN |
|
5904276343197
|
| Application |
|
• terrace tiles
|
| Minimum height [mm] |
|
70 mm
|
| Minimum height [inch] |
|
2 3/4 inch
|
| Maximum height [mm] |
|
95 mm
|
| Maximum height [inch] |
|
3 3/4 inch
|
| Load resistance up to |
|
3000 kg
|
| Load resistance up to [lbs] |
|
6613.86 lbs
|
| Load resistance up to [kN] |
|
30 kN
|
| What finishing materials can be used |
|
• concrete paver
• stone pavers • ceramic tile |
| Special Feature |
|
• Fireproof
• Fire resistance • Slope leveling • Inspection access • Sound insulation • Heavy load resistance |
|
|
|
| Regulation type |
|
smooth
|
| Total dimension - length |
|
130 mm
|
| Total product dimension length (inch) |
|
5 1/8 inch
|
| Total dimension - width |
|
130 mm
|
| Total product dimension width (inch) |
|
5 1/8 inch
|
| Head area |
|
(113 cm2)
|
| Head area [inch²] |
|
17.52 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 120 mm
|
| Head diameter (top plate) [inch] |
|
4 3/4 inch
|
| Base diameter |
|
Ø 130 mm
|
| Base diameter [inch] |
|
5 1/8 inch
|
| Weight |
|
~0.41 kg
|
| lbs |
|
0.9039 lbs
|
| Fire resistance |
|
A1
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
silver
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
ALU
|
| Percentage of recycled material |
|
0 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• exterior use
|
| Consists of |
|
Adjustable pedestal ALU 70-95 mm for outdoor raised flooring with tiles with built in 3 mm gap spacers - non combustible class A1
|
